商品の詳細:
|
| 名前: | ホット pp opp bopp 宅配便包装プラスチック切断製袋機 | ||
|---|---|---|---|
| ハイライト: | ホット pp opp bopp プラスチックバッグマシン,包装袋を作る機械,プラスチック袋切断機 |
||

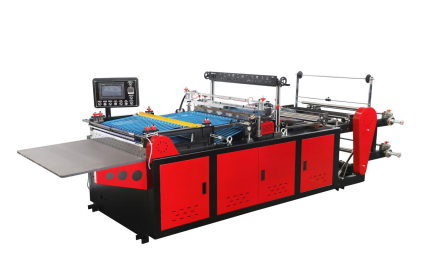

Hot pp opp bopp courier packing plastic Cutting Bag Making Machine
|
本機用於BOPP、OPP、POF、PE等印刷及非印刷塑料薄膜的熱切製袋。整機配有電腦自動定長、自動色標跟蹤、自動打圓孔。是製襪袋、毛巾袋、麵包袋、快遞袋、服裝袋、飾品袋等的理想設備。 This machine is used for hot cutting and bag making of printed and non printed plastic films such as BOPP, OPP, POF, PE, etc. The whole machine is equipped with computer automatic length setting, automatic color code tracking, and automatic round hole punching. It is an ideal equipment for making sock bags, towel bags, bread bags, courier bags, clothing bags, accessory bags, and more. |
| 樣品圖片 Sample Picture |
|
|
| 報價 quotation | ||
| 型號Model | 單價Unit Price | 選裝項 Optional Function |
| 500型 | FOB NB USD5500.00 |
糾偏機Correction machine Extra USD1000.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1000.00 |
| 600型 | FOB NB USD5700.00 |
糾偏機Correction machine Extra USD1000.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1000.00 |
| 700型 | FOB NB USD5900.00 |
糾偏機Correction machine Extra USD1200.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1200.00 |
| 800型 | FOB NB USD6000.00 |
糾偏機Correction machine Extra USD1300.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1300.00 |
| 900型 | FOB NB USD6900.00 |
糾偏機Correction machine Extra USD1400.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1400.00 |
| 1000型 | FOB NB USD7500.00 |
糾偏機Correction machine Extra USD1500.00; 高架Elevated Extra USD270.00; 輸送台conveyor platform Extra USD1500.00 |
| 1100型 | FOB NB USD8400.00 |
糾偏機Correction machine Extra USD1600.00; 高架Elevated Extra USD270.00; 輸送台conveyor platform Extra USD1600.00 |
| 1200型 | FOB NB USD8900.00 |
糾偏機Correction machine Extra USD1800.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD1800.00 |
| 1300型 | FOB NB USD9800.00 |
糾偏機Correction machine Extra USD2000.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD2000.00 |
| 1400型 | FOB NB USD11300.00 |
糾偏機Correction machine Extra USD2100.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD2100.00 |
| 1500型 | FOB NB USD13000.00 |
糾偏機Correction machine Extra USD2300.00; 高架Elevated Extra USD180.00; 輸送台conveyor platform Extra USD2300.00 |
| 技術參數 Technical Specifications | |
| 型號 Model | 600 - 700 - 800 - 900 - 1000 - 1100 - 1200 - 1300 - 1400 - 1500 |
|
製袋成品長度(範圍cm) Finished bag length (range in cm) |
55 - 65 - 75 - 85 - 95 - 105 - 115 - 125 - 135 - 145 |
|
製袋成品寬度 (範圍cm) Finished bag width (range in cm) |
60—80 |
|
生產速度(範圍pcs/minute) Production speed (range pcs/minute) |
20—320 |
|
機器重量(kg) Machine weight (kg) |
1000-1600 |
|
外形尺寸(mm) Dimensions (mm) |
3000×(900-1900)×1800 |
|
總功率(kw) Total power (kw) |
3.4—6.7 |
| 主要性能及特點 Main performance and characteristics |
| 上料部分 Feeding section:: |
|
①放料方式:採用上下雙層放料,帶彈簧鬆緊剎車功能. Material feeding method: Adopting double-layer feeding with spring elastic brake function. |
|
| 主機部分 Main section: |
|
①整機獨立研發採用PLC,觸摸屏電腦,伺服電機系統控制. The whole machine is independently developed using PLC, touch screen computer, and servo motor system control. |
|
|
②色標跟蹤,卷膜正反面印刷均可跟蹤,簡單的設定方式,精準識別定位薄膜上的圖形,實時檢測,丟標自動停機 Color code tracking, printing on both sides of the roll film can be tracked, with a simple setting method to accurately identify and locate the graphics on the film, real-time detection, and automatic shutdown for label loss |
|
|
③可上自粘膠,與卷材同時同步輸送帶動 Can be self-adhesive and synchronously transported with the roll material for driving |
|
④熱切刀採用合金材料,具有良好的耐磨性和腐蝕性,硬化處理不易變形,特殊配方不易粘料等優勢.加熱管溫度控制系統使得袋口熨合牢固,平整,溫度可調範圍:1-4400C The hot cutting knife is made of alloy material, which has good wear resistance and corrosiveness, is not easily deformed by hardening treatment, and has the advantages of special formula that is not easy to stick to materials. The temperature control system of the heating tube ensures that the bag opening is firmly and smoothly pressed, and the temperature can be adjusted within the range of 1-4400C |
|
|
⑤膠輥均具有良好的彈性,能在一定程度上緩衝袋子過程中的衝擊和震動.耐磨耐用,可長時間承受頻繁摩擦和壓力,不易磨損和變形.具有良好的防滑性能和外圓平整度 The rubber rollers have good elasticity and can buffer the impact and vibration during the bag making process to a certain extent. Durable and wear-resistant, able to withstand frequent friction and pressure for a long time, not easily worn or deformed. Has good anti slip performance and outer circle flatness |
|
|
⑥打孔器採用進口鋼材料,高速耐用,最高可達220次/分鐘 The puncher is made of imported steel material, which is high-speed and durable, with a maximum of 220 times per minute |
|
| 出料部分Discharge section: |
|
①設備出料採用一出一方式,平板式工作台面,電腦自動計個數,自動計批數,任意定長及可設定任意數報警自動停機停留,停留時間可電腦屏幕設定 The equipment adopts a one out one method for material discharge, with a flat worktable and automatic counting of quantities and batches by the computer. It can be set to any length or any number of alarms and automatically shut down for a certain duration. The dwell time can be set on the computer screen |
|
②靜電消除,採用大功率靜電消除器,性能穩定,輸出可靠,功率恆定,可長時間工作.消除袋子外層靜電,使得成品袋子出料整齊,平穩的送出.客戶在使用袋子過程中不易吸附 Static elimination, using high-power static eliminators, with stable performance, reliable output, constant power, and the ability to work for a long time. Eliminate static electricity on the outer layer of the bag, so that the finished bag can be discharged neatly and smoothly. The customer is not easily adsorbed during the use of the bag |
|
|
③送料皮帶採用光滑PU工業皮帶,耐高溫,不易拉長,防靜電.結合製袋速度與袋子大小,自行調整皮帶的速度快慢,能夠平穩的將袋子從切刀工序輸送至出料工作台 The feeding belt adopts smooth PU industrial belt, which is heat-resistant, not easy to stretch, and anti-static. By combining the bag making speed and bag size, the speed of the belt can be adjusted to smoothly transport the bags from the cutting process to the discharge workbench |
|
| 設備標準配置 Equipment standard configuration | |||
| 序号 NUM |
名稱 Name |
數量 Quantity |
產地 Original |
| 1. |
伺服電機 servo motor |
1 台 1 unit |
中國·江蘇 China · Jiangsu |
| 2. |
交流電機 AC motor |
1 台 1 unit |
中國·上海 China·Shanghai |
| 3. |
送料電機 feeding motor |
2 台 2 units |
中國·浙江(光達) Zhejiang, China (Guangda) |
| 4. |
靜電消除 static elimination |
1 台 1 unit |
中國·浙江 Zhejiang, China |
| 5. |
打孔器 punch |
1 台 1 unit |
自研 self-developed |
| 6. |
溫控表 Temperature Controller |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 7. |
光電跟蹤器 Photoelectric tracker |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 8. |
電器 electrical appliance |
1 台 1 unit |
中國·浙江 Zhejiang, China |
| 9. |
電腦控制器(SCH-11) Computer Controller (SCH-11) |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 10. |
液晶顯示屏 LCD (Liquid Crystal Display) |
1個 1 piece |
中國·北京 Beijing, China |
| 11. |
輸送皮帶 Conveyor belt |
1 台 1 unit |
中國·上海 China·Shanghai |
| 12. |
變頻器(F1000-G) Inverter (F1000-G) |
1 台 1 unit |
中國·(華蘭) China · (Hualan) |
| 13. |
電磁閥 solenoid valve |
1個 1 piece |
中國·台灣 Taiwan, China |
| 14. |
調速板 speed control board |
2個 2 pieces |
中國·浙江 Zhejiang, China |
| 15. |
傳感器 sensor |
2個 2 pieces |
中國·浙江(輝煌) Zhejiang, China (Glorious) |
| 16. |
霍爾開關(HH12D10) Hall switch (HH12D10) |
2個 2 pieces |
中國·浙江(輝煌) Zhejiang, China (Glorious) |
| 17. |
二連體 filter |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 18. |
鐵塊放料軸 Iron block feeding shaft |
2根 2 pieces |
自研 self-developed |
| 19. |
槽鋼(10號) Channel steel (No. 10) |
1 台 1 unit |
自研 self-developed |
| 20. |
驅動器 drive |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 21. |
位移開關 Displacement switch |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 22. |
固態溫度控制(1-400C°) Solid state temperature control (1-400C ° C) |
1 台 1 unit |
中國·浙江 Zhejiang, China |
| 23. |
固態 solid state |
1個 1 piece |
中國·浙江 Zhejiang, China |
| 24. |
膠輥 rubber roller |
5根 5 pieces |
自研 self-developed |
| 25. |
工作平台板 Work Platform Board |
1塊 1 piece |
自研 self-developed |
| 工廠實拍圖 Factory Photo |
|
|
|
| 展會 Exhibition |
| |
| |
| |
| |
訂購事項 Business Terms
一,交貨期:收到30%預付款後30-45天內交貨；
1. Delivery Time:
Within 30-45 days after the receipt of 30% advance payment.
二,付款方式:預付定金30%開始生產設備(合同簽訂後 2 個工作日內乙方向甲方支付該款項)
結清尾款70%發貨前付清(約定時間設備已製造完成,且經雙方初步確定驗收合格)
2. Payment Terms:
30% advance payment before production (to be paid within 2 workings days after signing the contract)
70% balance before delivery from Ruitai Factory (Machine finished production & after the approval of Buyer)
三,發貨標準:甲方設備的包裝要符合規定,且適合長途運輸,多次搬運和裝卸,並有減振,防衝擊的措施.包裝應按設備特點,按需要分別加上防潮,防霉,防鏽,防腐蝕的保護措施,以保證貨物安全運抵合同指定的地方.
3. Delivery Standard:
Ruitai’s delivery packaging should comply with regulations, suitable for long-distance transportation, multiple handling and loading/unloading, and have measures to reduce vibration and prevent impact. The packaging should be equipped with needed moisture-proof, anti-mold, anti-rust and anit-corrosion protection measures according to the characteristics of the equipment, to ensure the safe delivery of machine to the designated place.
四,安裝調試:應根據買方的指示派遣安裝調試人員(工資150美元/天,但買方需及時提供正式的邀請函,以便安裝調試人員及時申請簽證. 在調試期間和保修期間,買方承擔調試人員的往返機票,並且承擔調試人員在當地的食宿交通等費用,並且要保證調試人員在當地的 人身安全. 設備調試完成後,買方出具設備合格證書,賣方調試人員方可回中國.
4. Installation & Commission:
Ruitai will despatch engineers (Salary USD 150.00 per day) as per the Buyer's instructions, but the Buyer should provide Formal Invitation Letter for the Seller's engineer to apply for visa. For expenses occurring during the installation period and warranty period, the Seller should cover the round air tickets, and all the charges (such as food, hotels and transportation) during their stay, also need to make sure their safety. After completion, the Buyer will give the test report for equipment, and then engineers can be back to China.
